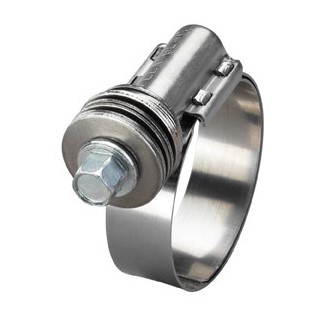

Flex-Gear 47 Stainless Steel Clamp

$0.00
Item #: 47036
UPC:
Availability: In Stock

Flex-Gear clamps use a Belleville spring design to eliminate "cold flow" leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. An excellent choice for fluctuating temperature and thermal compensation. Features and Benefits: Belleville spring and clamp consruction is built to respond to constant temperature fluctuations. The larger, havier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. Inner liner protects against shearing of the hose surfaces.

  • Heavier- gauge spring design eliminates "cold flow" leakage
  • Adjusts with the hose and fitting to create constant tension
  • Responds to areas of fluctuating temperatures and thermal compensation with a more dependable seal
  • Inner liner protects against shearing of the hose surfaces
  • 9/16" and 5/8" available
  • All components type 300 stainless steel
  • 75 in.Lbs. Torque for most applications
  • 50 lbf-in (5.6 Nm) for most applications
  • Minimum destructive torque is 85 lbf-in (9.6 Nm)
Width (in.): 9/16"
Package Qty.: 10
Size: 36
Screw Material: 410 Stainless Steel
Band Material: 300 SS Band w/300 SS Spring
Hex Head: 5/16"
Housing Material: 300 SS
Min Diameter (in.): 1.8125
Max Diameter (in.): 2.75
-
+
